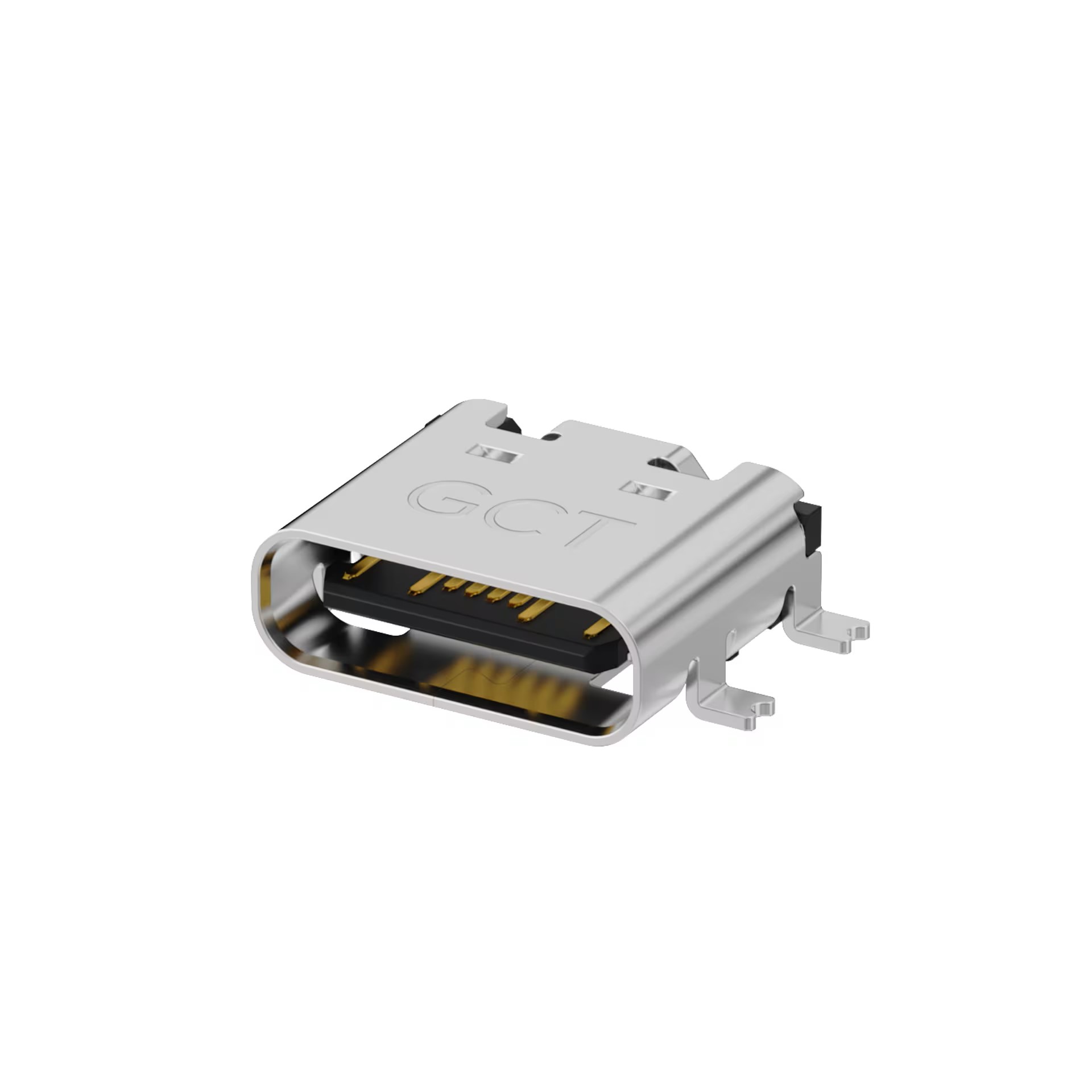

GCT 的 USB 连接器系列涵盖所有主流规格，从新一代 USB Type-C 到久经考验的 USB Type-A，再到节省空间的 Micro USB，均可提供可靠的高性能连接。每个系列都兼具机械耐用性和可靠的电气性能，为工程师在消费电子、工业、汽车和物联网应用的数据、电源和充电接口方面提供全面的灵活性。
Housing Material: High temperature thermoplastic. UL94V-0, Black
Contact Terminal: Copper Alloy
Metallic Shell: Stainless Steel
Mid Plate: Stainless Steel
Contact Terminal
Underplating: 50µ" Nickel
Contact Plating: Gold Flash
Solder Tail: Gold Flash over 50µ" Nickel
Metallic Shell: 50µ" Nickel
Voltage Rating: 48V DC
Current Rating: Vbus pins collectively 5.00A, GND pins collectively 6.25A, B5 pin 1.25A, Other pins 0.25A per pin
Contact Resistance: 40mΩ Max Initial 50mΩ Max after test
Insulation resistance: 100 MΩ min
Dielectric withstanding voltage: 100V AC. 1 Min
Durability: 20,000 Cycles
Mating Force: 5 to 20N
Unmating Force: 6 to 20N after testing
Operating Temperature: -40°C to +85°C
Solder Temperature: Peak temp 255°C (-0/+5°C) Maximum (5 seconds)
