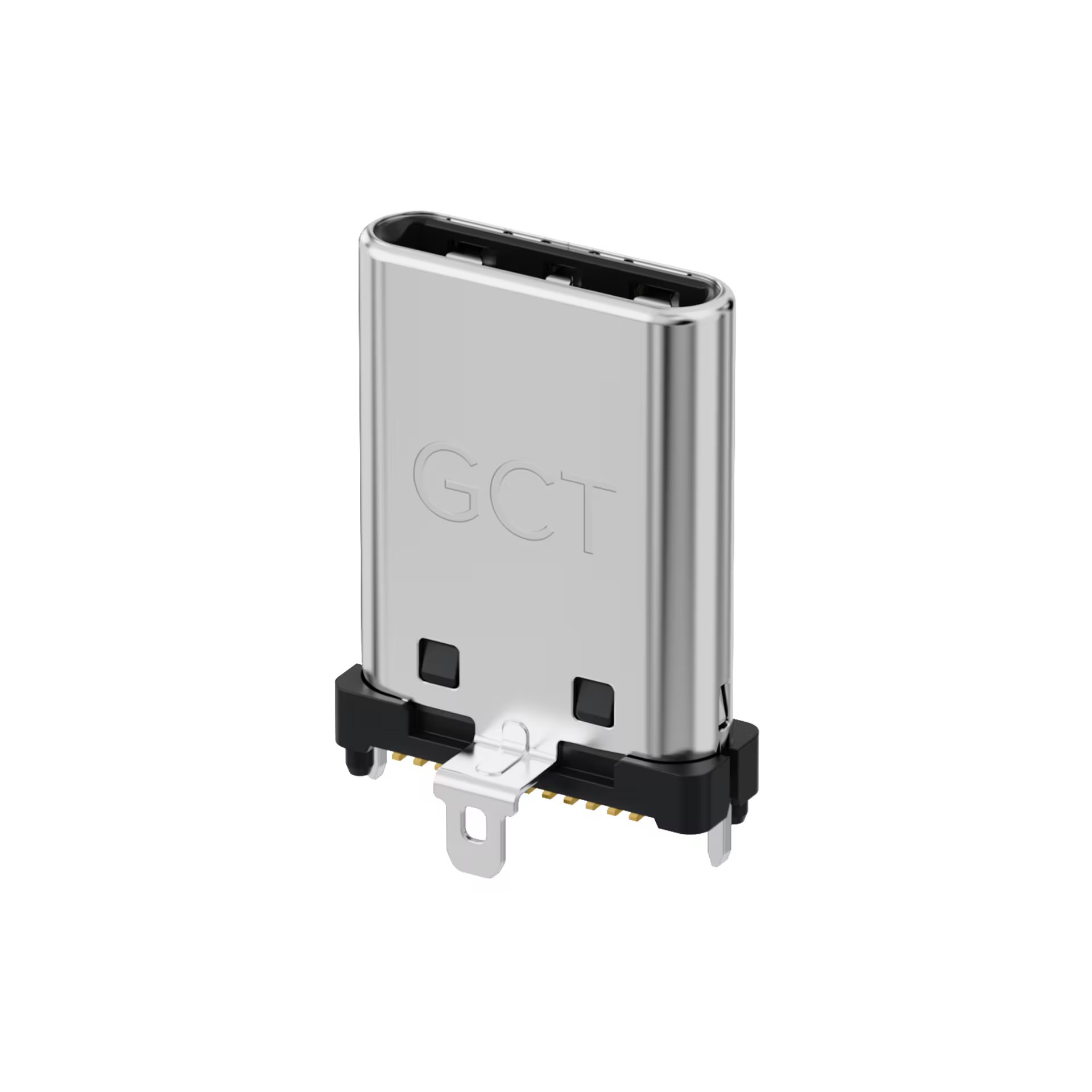

GCT 的 USB 连接器系列涵盖所有主流规格，从新一代 USB Type-C 到久经考验的 USB Type-A，再到节省空间的 Micro USB，均可提供可靠的高性能连接。每个系列都兼具机械耐用性和可靠的电气性能，为工程师在消费电子、工业、汽车和物联网应用的数据、电源和充电接口方面提供全面的灵活性。
Contact Material: C7025
Standard Insulator Material: LCP, UL 94V-0 Black
Metallic Shell: SUS304, T=0.15mm
Mid Plate: SUS301, T=0.3mm
Underplating: 50µ" Min. nickel all over
Contact Plating: Gold Flash over 50µ" Nickel
Solder Tail: 80µ" Tin
Metallic Shell: 50µ" Min. nickel all over
Voltage Rating: 48V DC
Current Rating: 5.0A Collectivly for V bus. 6.25A Collectivly for Ground pins, 1.25A for A5 & B5, 0.25A for all others
Contact Resistance: 50mΩ Max after test
Insulation resistance: 100MῺ Min
Dielectric withstanding voltage: 100V AC for 1 minute between adjacent terminal
Durability: 10,000 Cycles
Mating Force: 5 to 20N
Unmating Force: 6 to 20N after testing
Operating Temperature: -40°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)
