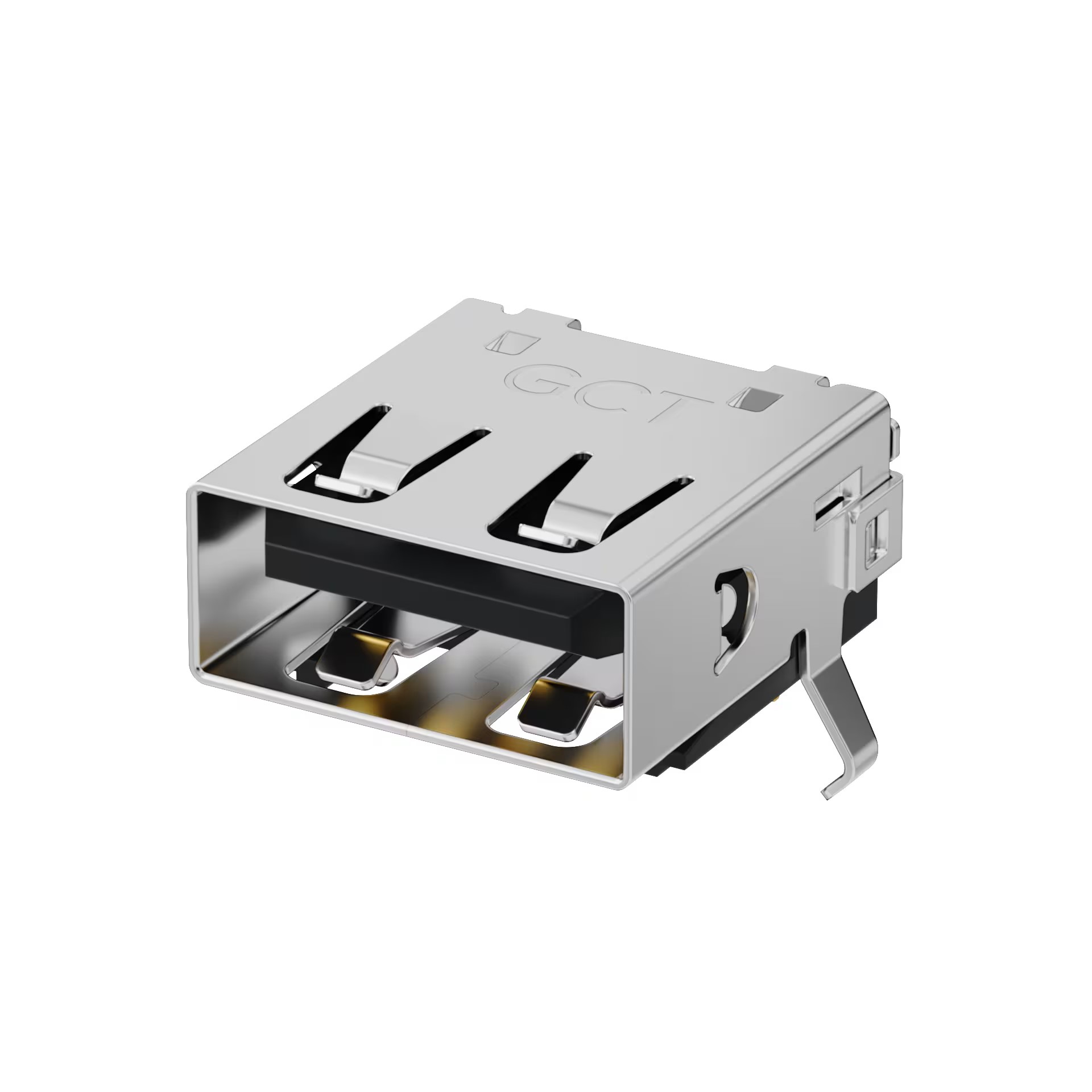

GCT 的 USB 连接器系列涵盖所有主流规格，从新一代 USB Type-C 到久经考验的 USB Type-A，再到节省空间的 Micro USB，均可提供可靠的高性能连接。每个系列都兼具机械耐用性和可靠的电气性能，为工程师在消费电子、工业、汽车和物联网应用的数据、电源和充电接口方面提供全面的灵活性。
Contact Material: C2680
Standard Insulator Material: LCP,E130i, UL-94V-0
Contact Terminal: Copper Alloy
Metallic Shell: SUS304
Contact Terminal
Underplating: 50µ" Min. nickel all over
Contact Plating: 15µ" Gold
Contact Plating Options: Gold Flash & 30µ" Gold
Solder Tail: Tin 100µ" Min
Metallic Shell: 50µ" Min. nickel all over
Voltage Rating: 30V
Current Rating: 3A
Contact Resistance: 30mΩ Max
Insulation resistance: 1000MΩ Min
Dielectric withstanding voltage: 500V AC for 1 minute between adjacent terminal, no breakdown
Durability: 10,000 Cycles
Mating Force: 35N (3.57Kgf) Max
Unmating Force: 10N (1.02Kgf) Min
Operating Temperature: -40°C to +85°C
Solder Temperature: Peak temp 260°C (+/-5°C) Maximum (5 seconds)
