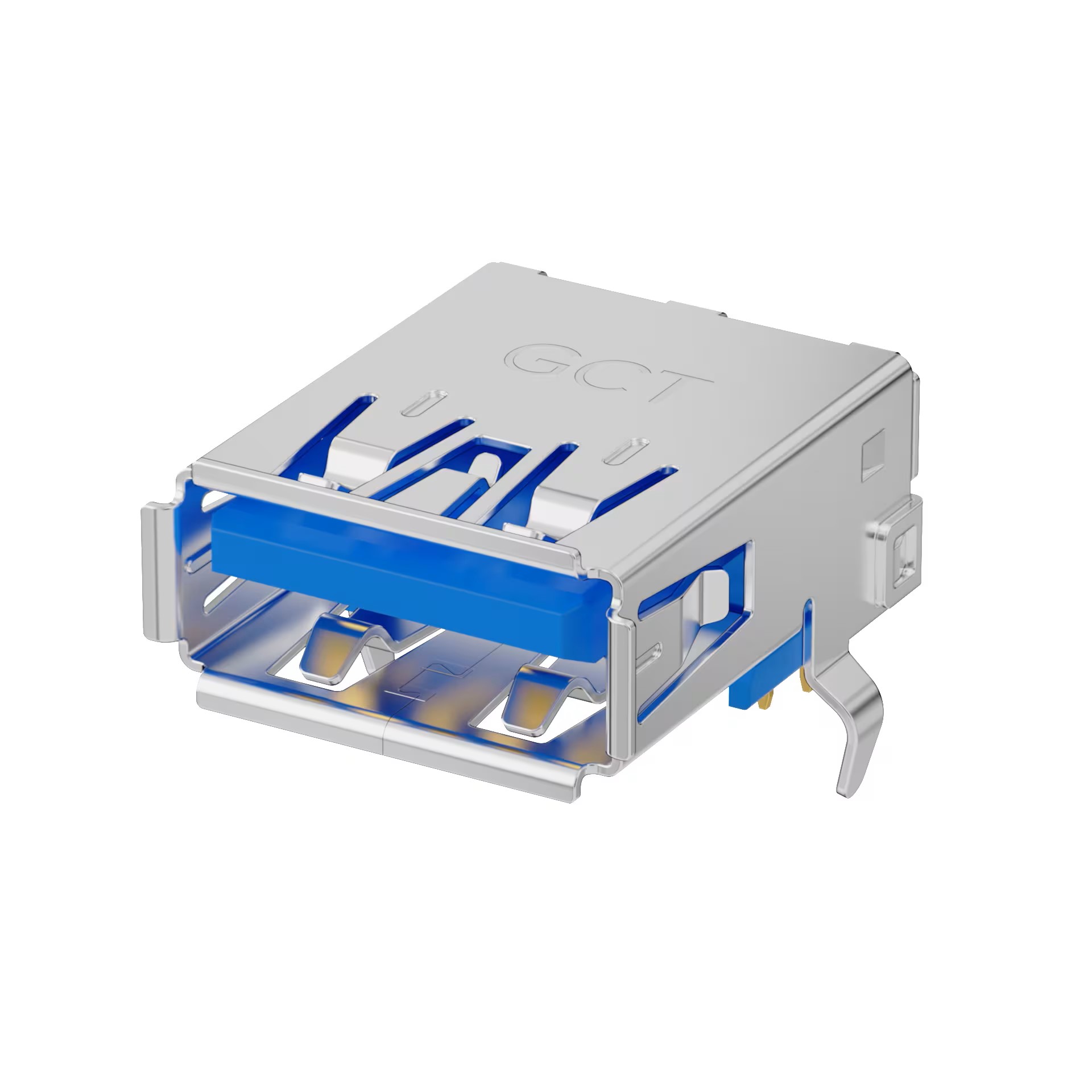

GCT 的 USB 连接器系列涵盖所有主流规格，从新一代 USB Type-C 到久经考验的 USB Type-A，再到节省空间的 Micro USB，均可提供可靠的高性能连接。每个系列都兼具机械耐用性和可靠的电气性能，为工程师在消费电子、工业、汽车和物联网应用的数据、电源和充电接口方面提供全面的灵活性。
Contact Material: Copper Alloy
Standard Insulator Material: PA9T, UL-94V-0, Blue
Contact Terminal: Copper Alloy
Metallic Shell: SUS304
Contact Terminal
Underplating: 50µ" Min. nickel all over
Contact Plating: Gold Flash
Contact Plating Options: 15µ" Gold
Solder Tail: Tin 100µ"
Metallic Shell: 50µ" Min. nickel all over
Voltage Rating: 30V
Current Rating: 3A
Contact Resistance: 30mΩ Max (Power), 50mΩ Max (Signal)
Insulation resistance: 100MΩ Min
Dielectric withstanding voltage: 100V RMS for 1 minute between adjacent terminal, no breakdown
Durability: 20,000 Cycles
Mating Force: 35N (3.57Kgf) Max
Unmating Force: Initial 10N (1.02Kgf) Min, Final 8N (0.82Kgf) Min.
Operating Temperature: -55°C to +85°C
Solder Temperature: Peak temp 260°C (+/-5°C) Maximum (5 seconds)
