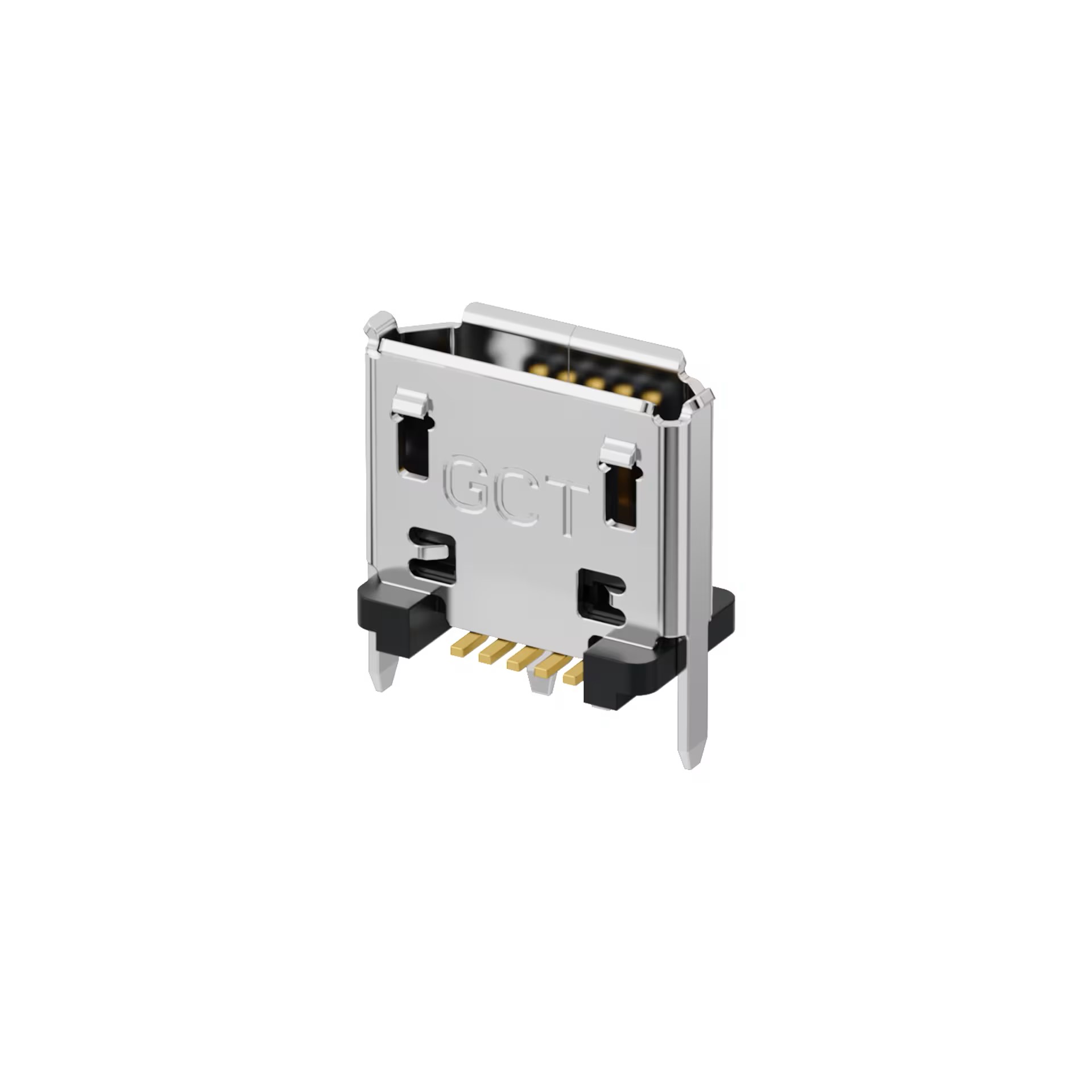

GCT 的 USB 连接器系列涵盖所有主流规格，从新一代 USB Type-C 到久经考验的 USB Type-A，再到节省空间的 Micro USB，均可提供可靠的高性能连接。每个系列都兼具机械耐用性和可靠的电气性能，为工程师在消费电子、工业、汽车和物联网应用的数据、电源和充电接口方面提供全面的灵活性。
Contact Material: Copper Alloy
Housing Material: LCP, UL94V-0, black
Contact Terminal: Copper Alloy
Metallic Shell: Stainless steel
Contact Terminal
Underplating: 50µ" Nickel all over
Contact Plating: 30µ" Gold
Solder Tail: Gold Flash
Metallic Shell: Matte Tin over 50µ" Nickel
Voltage Rating: 30V AC
Current Rating: Signal (Pins 2,3,4): 1.0A, Power (Pins 1,5): 1.8A
Contact Resistance: 30mΩ Max
Insulation resistance: 1000MΩ Min.
Dielectric withstanding voltage: 500V AC/Minute
Durability: 10,000 cycles
Mating Force: 35N (3.57Kgf) Max
Unmating Force: Initial - 10N Max, Final 8 - 25N after durability test
Operating Temperature: -30°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (10 seconds)
