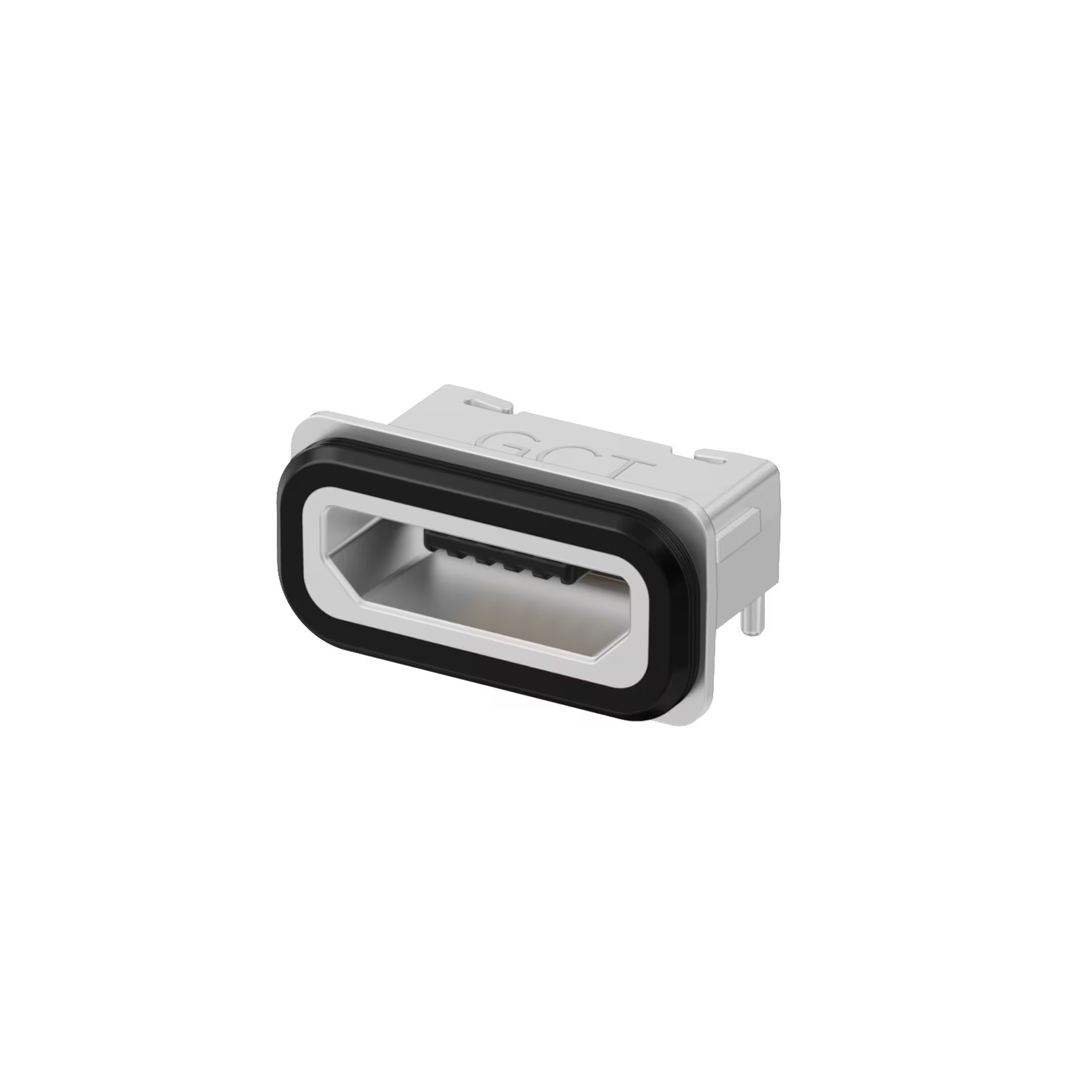

GCT 的 USB 连接器系列涵盖所有主流规格，从新一代 USB Type-C 到久经考验的 USB Type-A，再到节省空间的 Micro USB，均可提供可靠的高性能连接。每个系列都兼具机械耐用性和可靠的电气性能，为工程师在消费电子、工业、汽车和物联网应用的数据、电源和充电接口方面提供全面的灵活性。
Contact Material: Copper Alloy
Standard Insulator Material: High Temp Plastic
Metallic Shell: Stainless Steel
Metalic Shell
Underplating: 50µ" - 80µ" Nickel all over
Contact Plating: 30µ" Gold
Solder Tail: Matte Tin
Metallic Shell: Stainless Steel
Voltage Rating: 30V AC
Current Rating: Signal (Pins 2,3,4): 1.0A, Power (Pins 1,5): 1.8A
Contact Resistance: 30mΩ Max
Insulation resistance: 1000MΩ Min
Dielectric withstanding voltage: 100V AC
Durability: 10,000 Cycles
Mating Force: 35N Max
Unmating Force: 8N - 25N
Operating Temperature: -30°C to +85°C
Solder Temperature: Peak temp 260°C Maximum (10 seconds)
