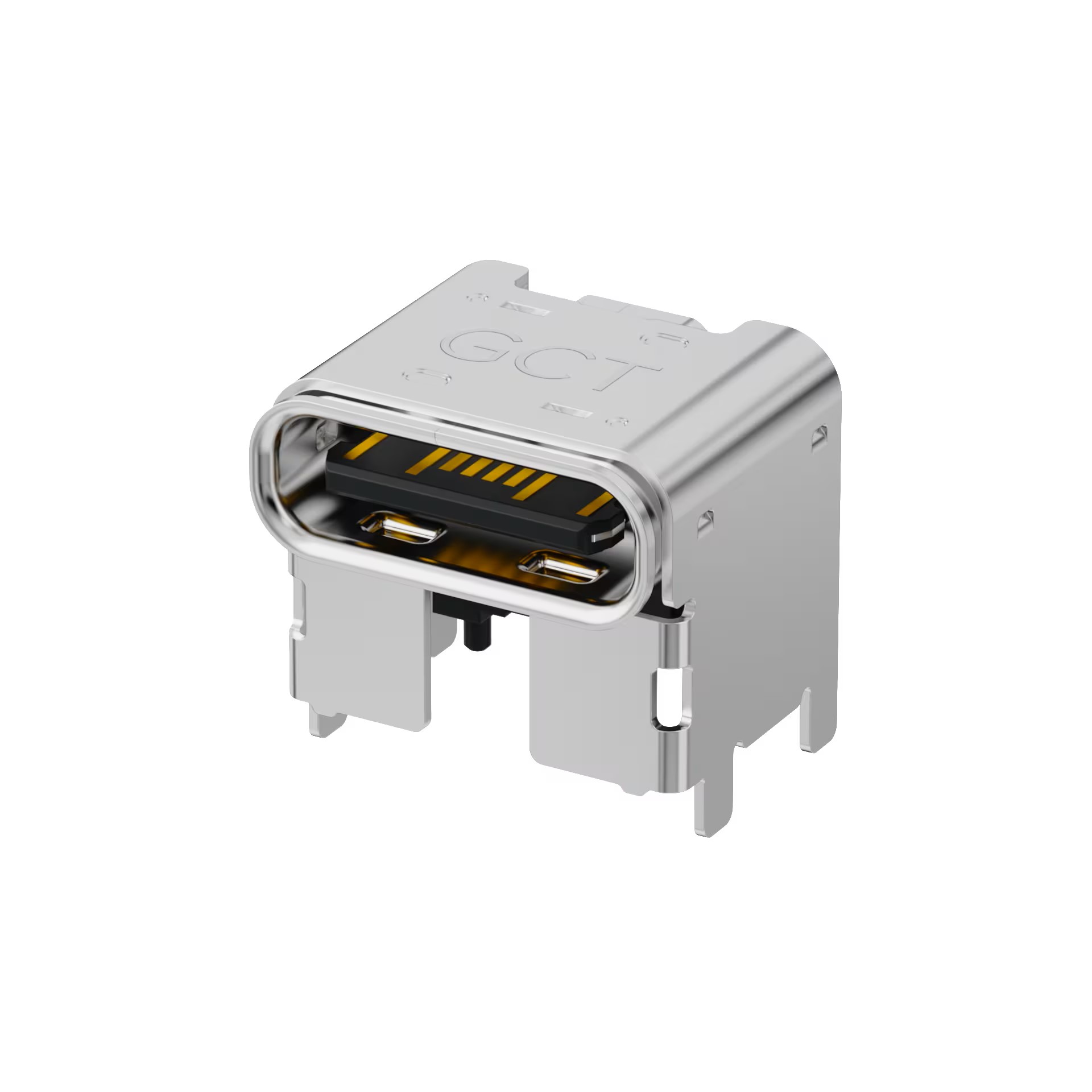

GCT 的 USB 连接器系列涵盖所有主流规格，从新一代 USB Type-C 到久经考验的 USB Type-A，再到节省空间的 Micro USB，均可提供可靠的高性能连接。每个系列都兼具机械耐用性和可靠的电气性能，为工程师在消费电子、工业、汽车和物联网应用的数据、电源和充电接口方面提供全面的灵活性。
Contact Material: Copper Alloy
Standard Insulator Material: LCP, Black, UL 94V-0
Contact Terminal: Copper Alloy
Metallic Shell: Stainless steel
Mid Plate: Stainless steel
Contact Terminal
Underplating: 50µ" Min. nickel all over
Contact Plating: 3µ" Gold
Solder Area: Gold flash
Solder Tail: Gold flash
Metallic Shell: 30µ" Min. nickel all over
Voltage Rating: 48V DC
Current Rating: 5A
Contact Resistance: 40mΩ Max (Initial), 50mΩ Max (After Test)
Insulation resistance: 100MΩ Min
Dielectric withstanding voltage: 100VAC, 1 Min.
Durability: 20,000 Cycles
Mating Force: 5 to 20N
Unmating Force: 6 to 20N after testing
Operating Temperature: -25°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)
