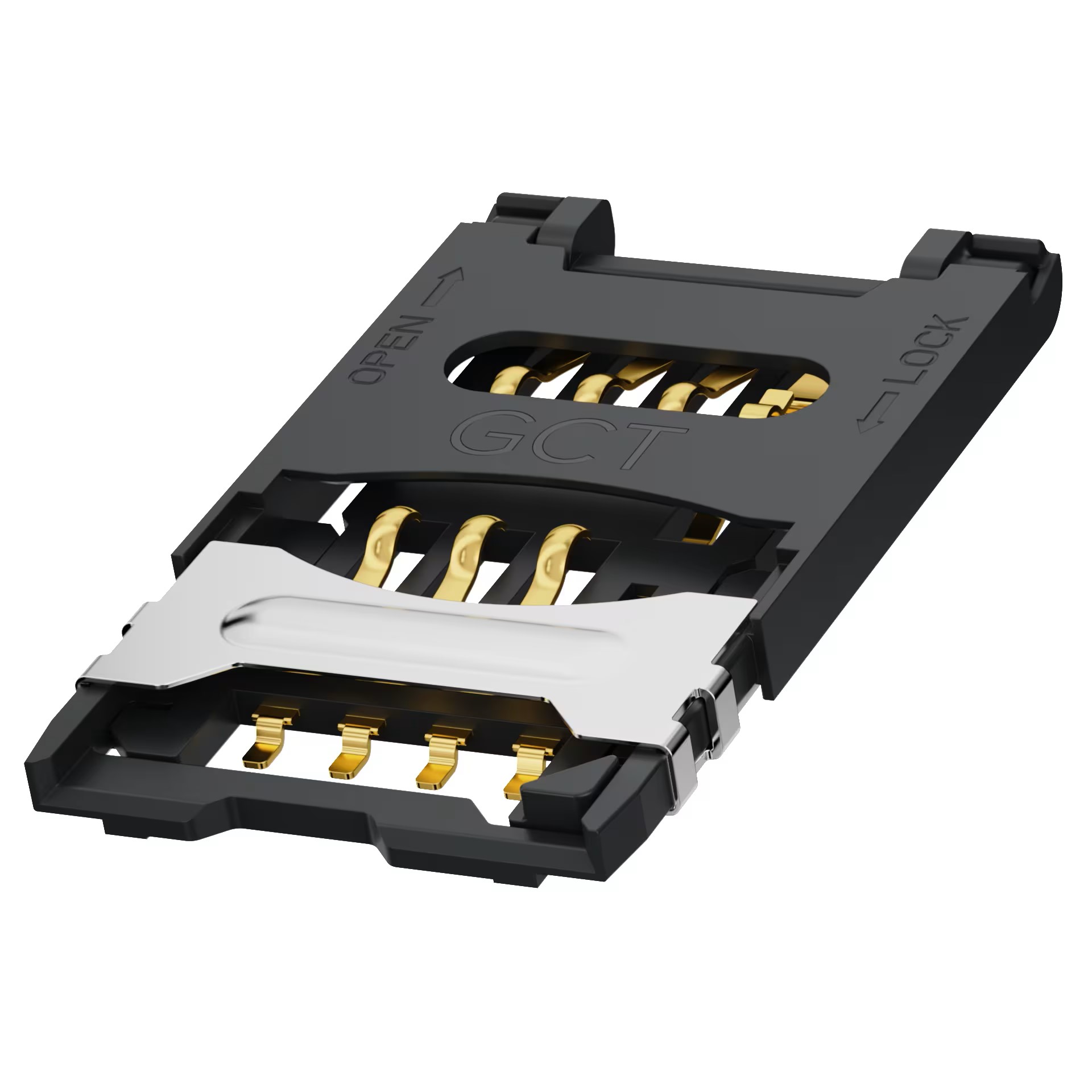

领先的电子元器件分销商 - 邦晶科技 | BonChip-SIM5055 系列 SIM卡连接器 产品



Material

Housing Material: LCP, UL94V-0
Contact Terminal: Phosphor Bronze
Metallic Shell: Stainless Steel - SUS304

Plating

Contact Terminal
Underplating: Ni overall 50µ"
Contact Plating: 5µ" Gold
Solder Area: 100µ" Tin

Electrical

Voltage Rating: 50V Max.
Current Rating: 1A Max
Contact Resistance: 50mΩ typical, 100mΩ Max.
Insulation resistance: 1000MΩ Min. (Apply 500VDC)
Dielectric withstanding voltage: 500V AC min for 1 minute

Mechanical

Durability: 5,000 cycles

Environmental and Processing

Operating Temperature: -40°C to +85°C
