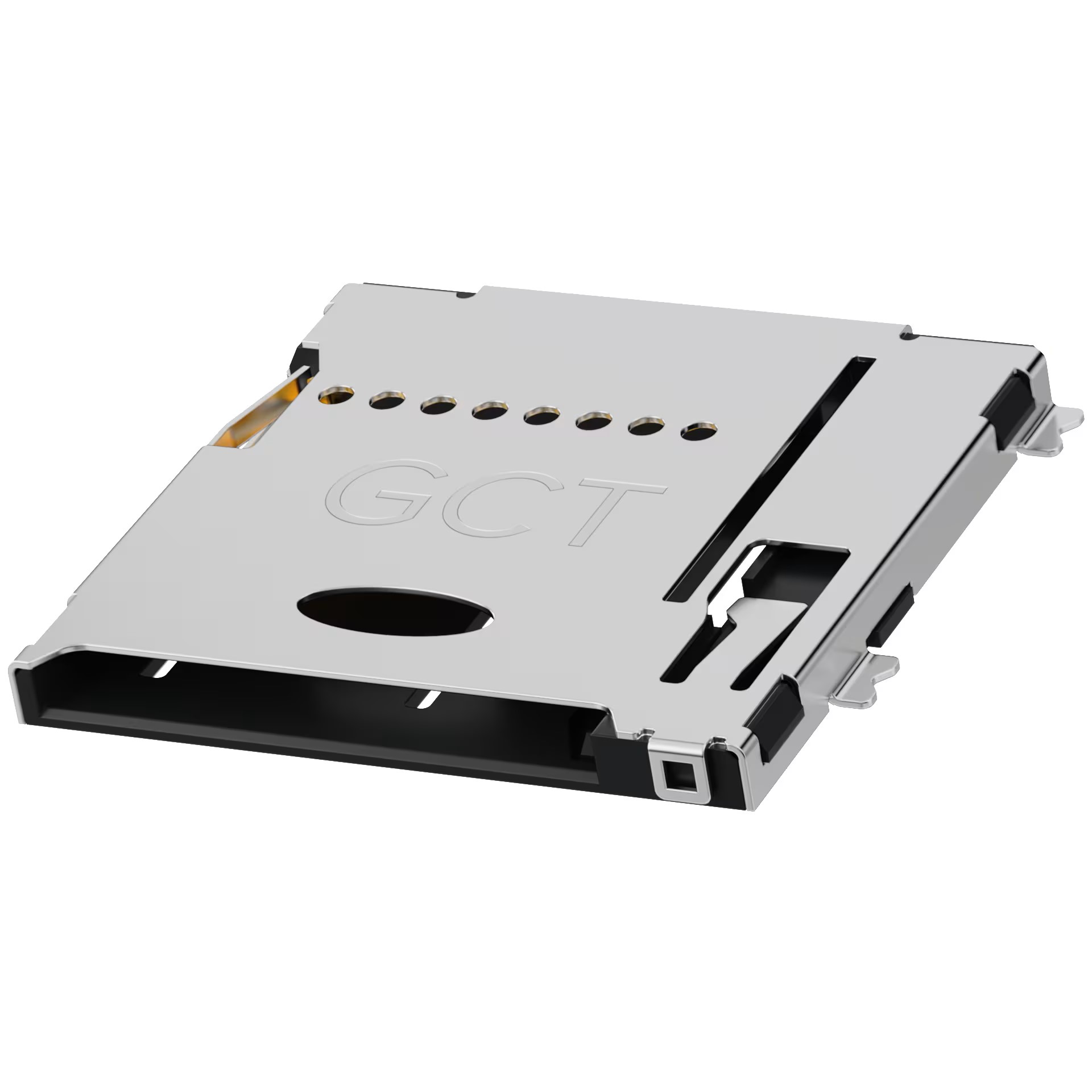

GCT 的 Micro SD 连接器采用紧凑型设计，提供可靠的数据存储，是空间有限且性能至关重要的消费电子设备、工业系统和物联网应用的理想之选。这些连接器提供推推式、推拉式和铰链式三种类型，提供灵活的卡片访问方式和坚固的机械性能，可支持嵌入式和现场可维护设计中的频繁使用。
Housing Material: High temperature thermoplastic
Contact Terminal: Copper alloy
Metallic Shell: Stainless steel
SMT Hold Down: Stainless Steel
Contact terminal plating
Underplating: 50µ" Nickel all over
Contact Plating: 1µ" Gold
Solder Area: Gold flash
Metallic shell plating
Metallic Shell: Nickel, gold flash on solder tabs
Voltage Rating: 30V AC/DC
Current Rating: 0.5A Max per pin
Contact Resistance: 100mΩ Max
Insulation resistance: 1000MΩ min. (Apply 500 VDC)
Dielectric withstanding voltage: Withstand 500 V AC for 1 min
Durability: 5,000 cycles
Operating Temperature: -25°C to +85°C
